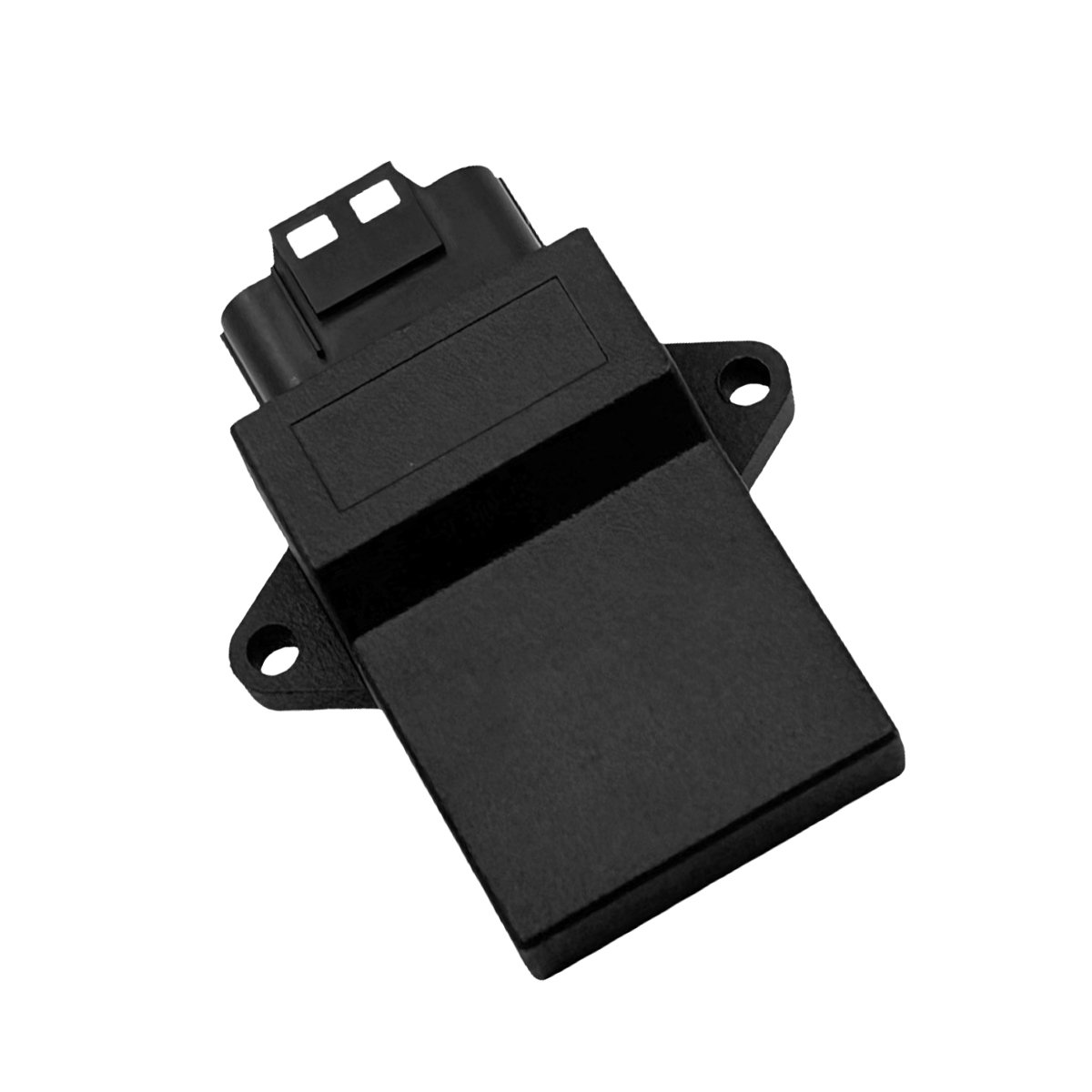

FCR-22 Engine Management System for 1 to 2 Cylinder Applications
The FCR-22 engine management system redefines possibilities for 1-2 cylinder applications in both industrial and recreational sectors. It integrates cutting-edge technology, offering advanced features at an affordable price point. This innovation empowers OEMs to access top-tier engine management without a premium price point, making it a game-changer in the market.
Applications
Designed for 1-2 cylinder spark ignited engines that require ultra high reliability.
General Hardware Requirements
Ambient Temperature: -40 to 60 deg C
Voltage Supply: 13.7V (±3V)
Protection class: IP67 when mated
Plug connector: MX23A26SF1
Communication interface: UAR | XCP calibration interface
Engine Characteristics
Engine Speed: 300 RPM to 10000 RPM
Power: Up to 100 hp
Speed Sensor: Hall Sensor
Encoder Type: Gear wheel with missing tooth (i.e. 24-1)
Motor configuration: 1-2 Cylinder
Injection system: High impedance injectors, Port injected, 1 injector per cylinder (Qty 2x)
Ignition system: Inductive ignition coil (Qty 2x)
Throttle control: Drive-by-wire via servo PWM signal
Fuel pump control: Mechanical pressure regulation or ECU controls power to Fuel Pump
AFR control: Closed-loop control
